RUSSIAN JOURNAL OF EARTH SCIENCES VOL. 10, ES6006, doi:10.2205/2008ES000304, 2008

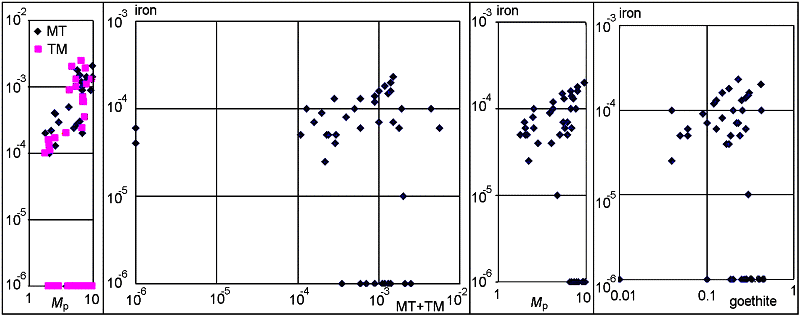

Figure 8. Correlation between paramagnetic magnetization (
Mp ), concentration of
ferromagnetic Fe-hydroxides (goethite), magnetite, titanomagnetite, and metallic iron in
sediments from the Klyuchi and Teplovka sections [Molostovsky et al., 2006;
Pechersky, 2008].

Citation: Pechersky, D. M. (2008), Metallic iron in sediments at the Mesozoic-Cenozoic (K/T) boundary, Russ. J. Earth Sci., 10, ES6006, doi:10.2205/2008ES000304.
