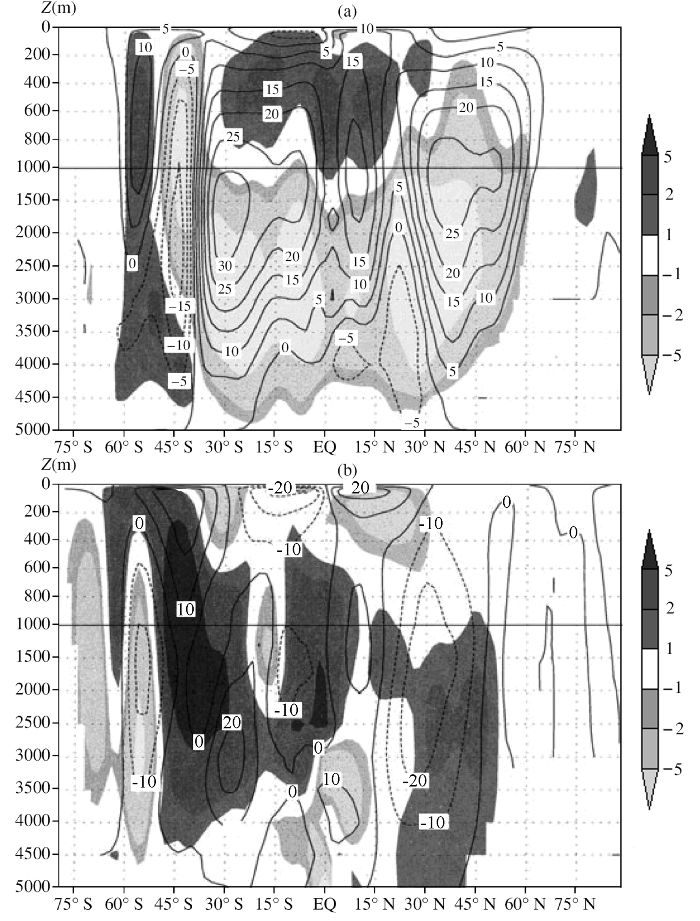

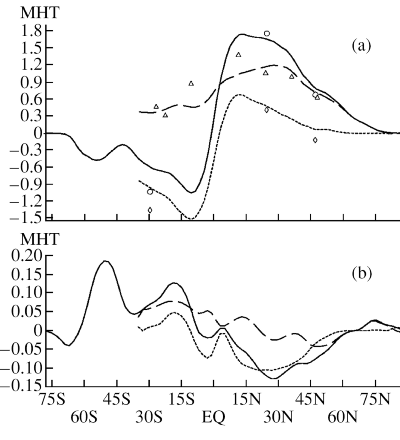

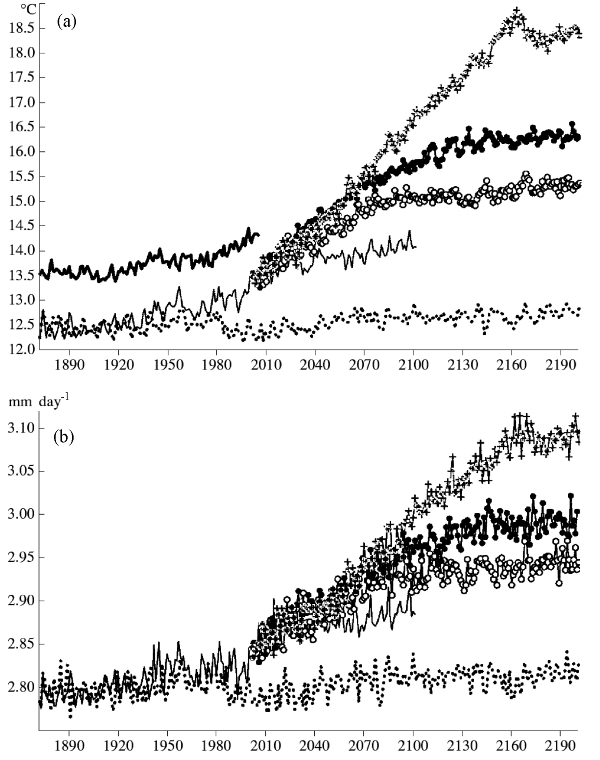

Figure 9. Stream function of zonally averaged meridional circulation and its response in the Atlantic Ocean (a) and the Pacific plus Indian oceans (b). The solid contours denote the positive values of the meridional stream function, which correspond to the clockwise motion, and the dashed contours denote the negative values, corresponding to the counterclockwise motion. The response of meridional circulation to increased CO2 is shown with the aid of shading with the gradation scale on the right.
