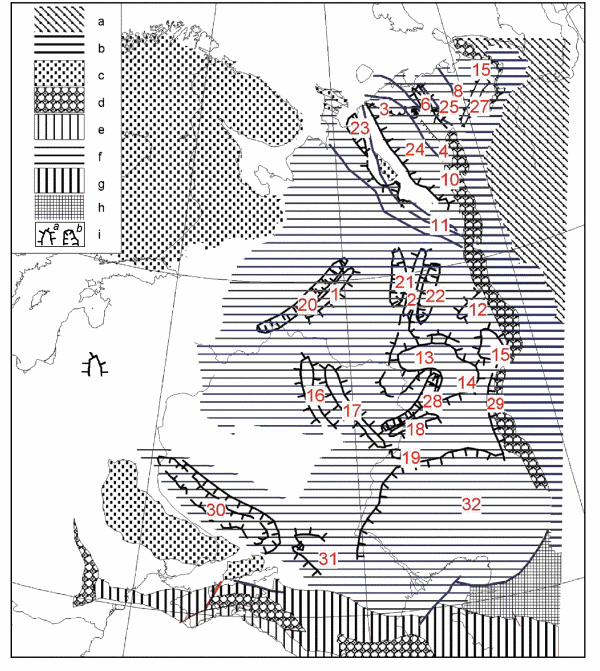

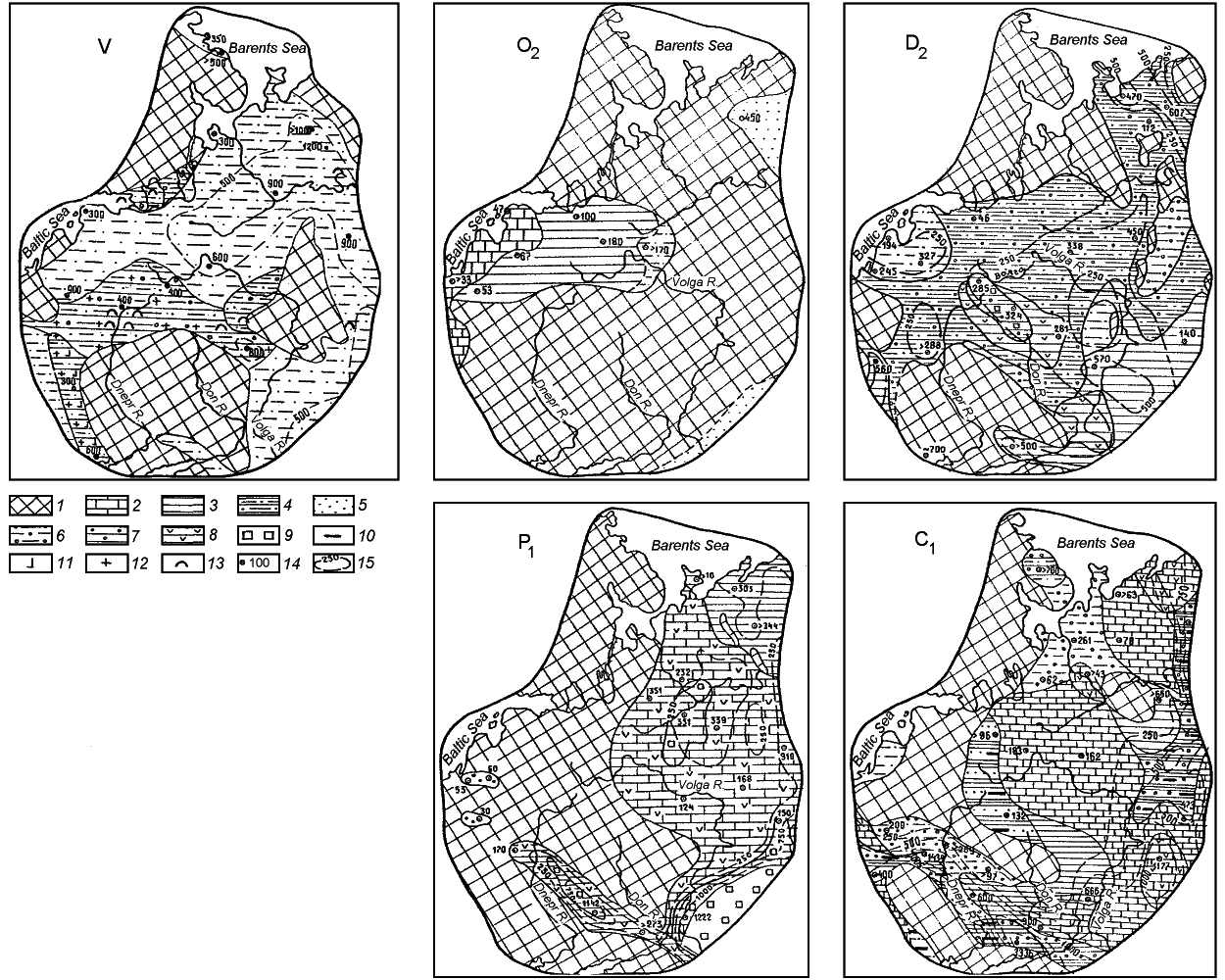

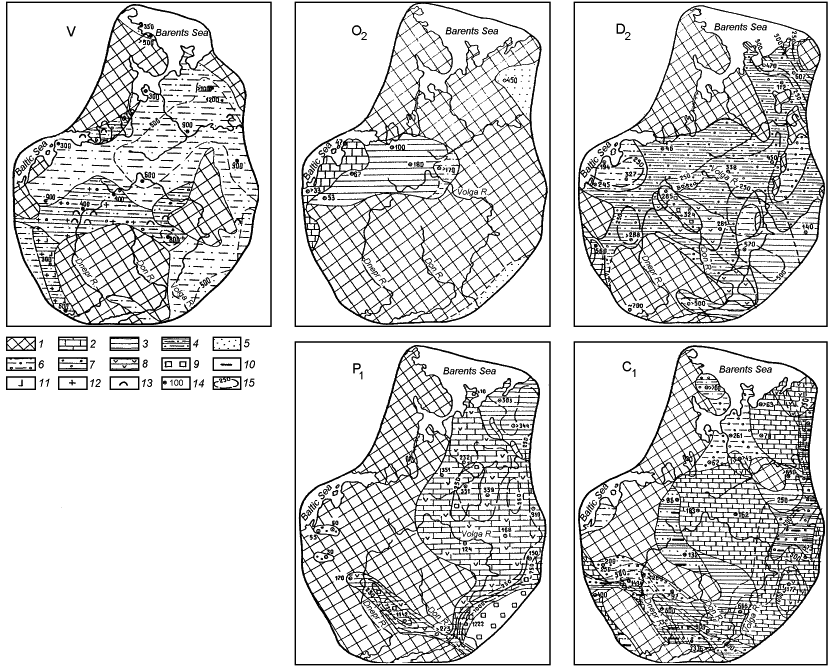

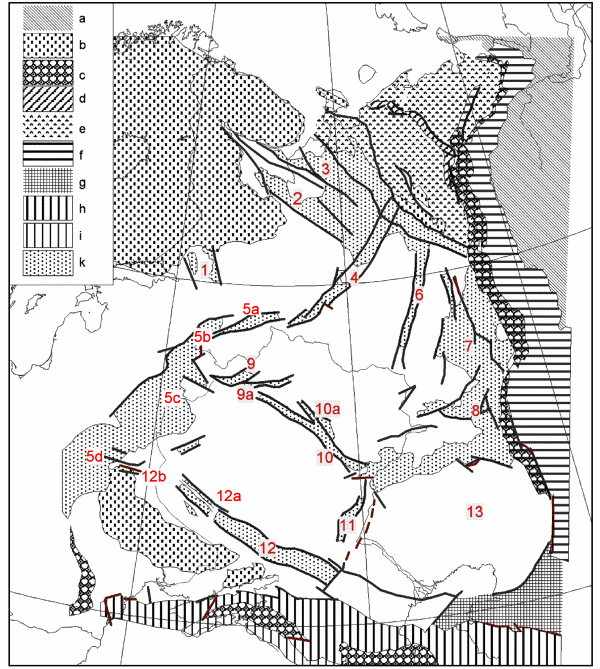

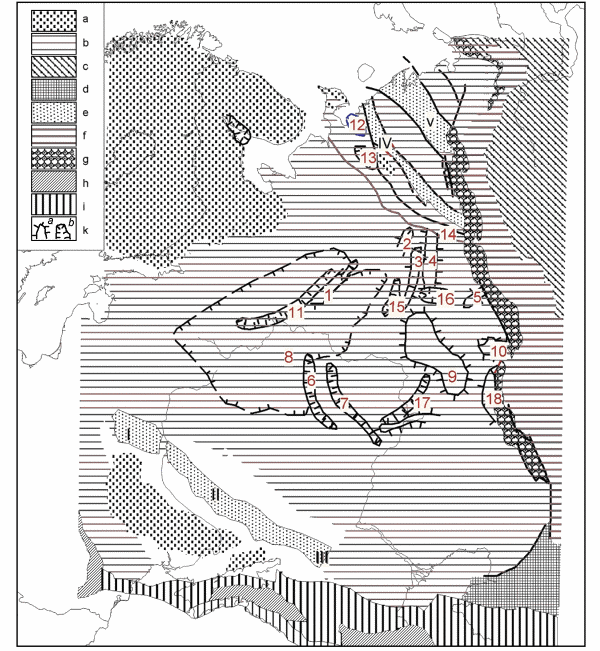

Figure 4. The sketch of the East-European platform sedimentary cover structures at the end of Permian. a - West-Siberian plate, b - Uralian fold belt, c - outcrops of the basement, d - foredeeps, e - Alpine folded, f - area of the Carboniferous to Permian deposits distribution, g - Skythsko-Turanskaya EpiPaleozoic plate, h - Ustyurtskiy block, i - local structures: a - anticlines, b - synclines (1 - Sukhonskaya, 2 - Vyatskaya, 3 - Seduyakhinskaya, 4 - Pechoro-Kozhvinskaya, 5 - Shapkinskaya, 6 - Layskaya, 7 - Kolvinskaya, 8 - Sorokina, 9 - Gamburtseva, 10 - Michayusskaya, 11 - Yuzhnotimanskaya, 12 - Permskaya, 13 - Kukmorskaya, 14 - Al'met'evskaya, 15 - Bashkirskaya, 16 - Oksko-Tsninskaya, 17 - Tokmovskaya, 18 - Zhigulevskaya, 19 - Balaklavskaya, 20 - Lubimsko-Soligalichskaya, 21 - Sysol'skaya, 22 - Verkhnekamskaya, 23 - Peshskaya, 24 - Pechorskaya, 25 - Khoreyverskaya, 26 - Korotaikhinskaya, 27 - Kos'yu-Rogovskaya, 28 - Melekesskaya, 29 - Bel'skaya, 30 - Dneprovo-Donetskaya, 31 - Tsimlyanskaya, 32 - Prikaspiyskaya).
