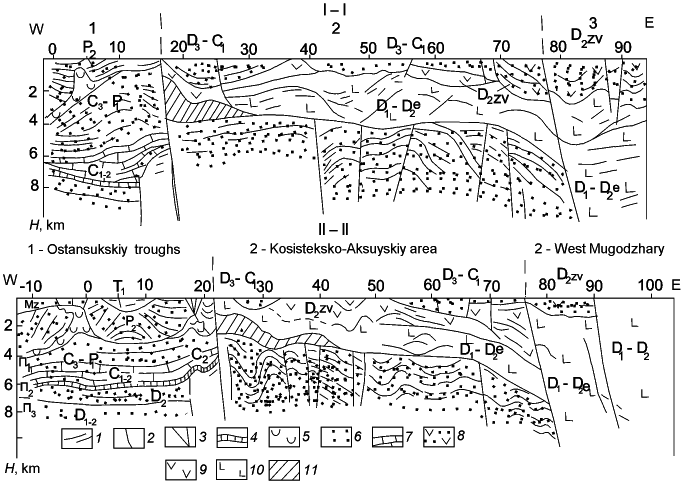

Figure 2. Geological and geophysical sections of western Mugodzhar region along seismic profiles obtained with the use of common depth point method 657-A (I-I) and 918-A (II-II) from data by Kan [1994]. Symbols: 1 - reflecting horizons and areas; 2 - Sakmarsko-Kokpektinskiy fault; 3 - other faults; 4 - basement of orogenic complex C3-P1; 5 - salt-bearing sediments of Kungurian stage P1; 6 - terrigenous sediments; 7 - carbonaceous sediments; 8 - sedimentary-volcanogenic deposits; 9 - volcanogenic complexes of differentiated composition; 10 - volcanogenic basic complexes; 11 - ultrabasic rocks and serpentinite.
