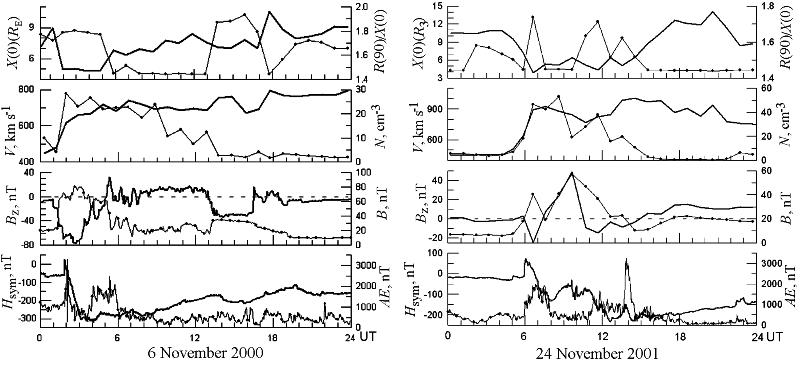

Figure 12. Disturbances in the magnetosphere and interplanetary environment during the magnetic storms on 6 and 24 November 2001. The bottom panel shows the data on Hsym (total field) and AE indices. The next panel shows the data on the Bz component of the interplanetary magnetic field and its total value B. The second panel from the top shows the data on the solar wind velocity V and its density N . The top panel shows the calculated values of the distances to the subsolar point of the magnetopause X(0) and the ratio of the distances to the magnetopause at the angle of 90o and at the sunward direction R(90)/X(0). R E - Earth's radius.
