RUSSIAN JOURNAL OF EARTH SCIENCES VOL. 8, ES4003, doi:10.2205/2006ES000215, 2006
Explicit asymptotics for tsunami waves in framework of the piston modelS. Yu. Dobrokhotov, and S. Ya. Sekerzh-ZenkovichInstitute for Problems in Mechanics, Russian Academy of Sciences, Moscow, Russia B. Tirozzi Department of Physics, University "La Sapienza", Rome, Italy B. Volkov Department of Physics, Moscow State University, Moscow, Russia Contents
Abstract[1] An asymptotically numerical description of tsunami waves propagation in a basin with non-uniform depth in a neighborhood of wavefronts that can have caustics is proposed. The piston model and the long wave approximation are used. It is assumed that the size of the area of the initial disturbance is small in comparison both with the characteristic length of interval of the varying of the bottom depth and the distance from the observation point. The description is based on a generalization of asymptotic approach known as the Maslov canonical operator. We find formulas that are relatively simple and can be transformed in a computer program for fast calculating wave profiles. Some features of the tsunami waves propagation in basins of non-uniform depth are illustrated by graphics. 1. Introduction[2] The traditional modelling of the tsunami waves propagation in the open ocean is done by solving the linear hydrodynamical equation in 2-D long wave approximation and in the framework of the so called "piston model'', which assumes that the source of the tsunami is given by an instantaneous vertical velocity of a certain region of the bottom of the ocean which generates an uplift of the ocean surface
Here
h(x,t) is the elevation of the ocean surface,
H(x) is the depth of the basin,
g is the gravity acceleration, and
V(x/l) is the uplift of the ocean surface localized in the area
of a characteristic size
l. It is assumed that
l is small
in comparison both with the characteristic length of the
interval of change of the bottom depth and the distance from the
observation point. This means in particular also that the
function
V(y) decays fast as
|y| [3] Problem (1, 2) seems like a classical one for mathematical physics and asymptotical analysis. Nevertheless the explicit formula for its solution (which can be transformed in a computer program for fast calculation of wave profiles) were obtained quite recently, although some asymptotic representation was given in [Dobrokhotov et al., 1991]. The main mathematical difficulties here are related with the metamorphosis of the solution: it is localized in the neighborhood of the point x=0 (the origin) at t=0, but after some time it changes its structure taking the form of a function localized in the neighborhood of a closed curve (the wave front), which in turn can have sometimes self-intersection and singular (focal) points. This phenomena was described in asymptotic theories for fast oscillating and non smooth solutions of a wide range of partial differential equations. The global representation for fast oscillating solutions (with effects of focalization taken into account) is given by the Maslov canonical operator [Maslov, 1965; Dobrokhotov and Zhevandrov, 2003]. However, one cannot apply this theory to problem (1, 2) directly because the solutions in this case have a different structure. Nevertheless two simple ideas allow one to modify the Maslov approach and obtain explicit asymptotic formulas for the solutions of (1, 2): 1) the problem about localized solutions can be transformed to the one about fast oscillating solutions with a Fourier-type integral transform, 2) the final formulas can be simplified if one takes into account the ideas from boundary layer expansions near the wave fronts. We combine these ideas together with the Maslov theory [Maslov, 1965; Maslov and Fedoiuk, 1981; Dobrokhotov and Zhevandrov, 2003] and results from [Dobrokhotov et al., 1991; Maslov and Fedoiuk, 1989]. Finally we propose an asymptotic-numerical description of tsunami in a basin with non-uniform depth in a neighborhood of wavefronts that can have caustics. This approach takes into account in a simple and direct way physical effects (like the metamorphosis of the tsunami front mentioned above) coming from the singularities related with the Hamiltonian system i.e. focal points and caustics. The presented formulas can be transformed in a computer program by means of the software of the type of Mathematica or Maple for calculating wave profiles and so they can be used for a reliable early warning system. Here we explain the meaning of the final formulas announced by Dobrokhotov et al., [ 2006a] (some more details can be found in [Dobrokhotov et al., 2006b]). In the graphics we show that many features of the tsunami wave propagation in such basins can be explained by means of straightforward formulas without any additional complications. 2. General Equations and Asymptotic Formula for Wave Profile in the Uniform Depth Basin2.1. The General Equations[4] Let us give first very rough arguments showing the possibility to use (1, 2) for a description of tsunami waves in a frame of the piston model over slow varying bottom. The equations (1) are obtained from the following linear equations of the piston model without the assumption of long wave approximation for the velocity potential F(x,z,t) and the elevation of the free surface h(x,t) (see e.g. [Whitmore and Sokolowski, 1996; Pelinovski, 1996; Kowalik and Murty, 1993; Lewis and Adams, 1983; Shokin et al., 1989; Tinti, 1993])
where
d is the delta function, and it is assumed that
F [5] The task is to evaluate h(x,t) at large distances |x|>>l from the source, near the wavefronts (where |h| has its maximum values), assuming that l>>H(x) and that the depth H(x) has a small variation at distances of the order l. 2.2. Asymptotic Formula[6] In the case of the basin of a uniform depth H0, the wavefronts are the circles |x|=C0 t, where C0=(gH0)1/2 is the velocity of the long waves. We seek the solution for the problem (3) in the form of the Fourier transform with respect to x=(x1,x2) and with Fourier parameter p=(p1,p2). Using in the integrand polar coordinates (r,f) defined by the formulas p1=r/l cosf, p2=r/l sinf we obtain
where
and the angle y is defined by the equations
Below, we consider in detail the case, when the initial vertical displacement of the bottom is like a ridge (or a valley), though the approach developed here is applicable for any other localized disturbance. [7] To make final formulas more explicit let us model the initial displacement using the function of the type of the Gaussian exponent with oscillations:
where a1, a2, 1 < b1, b2 < 3, q, c are dimensionless parameters and V0 is the parameter of the dimension of length. [8] Substituting for V(y) from (6) in (5) we obtain
where
Now we derive the equation (9) under the main assumption |x|>>1. We estimate the integral with respect to q by the stationary phase method. After some calculations we have the following asymptotic formula for h(x,t) (see [Borovikov and Kelbert, 1996; Dobrokhotov et al., 1993; Berry, 2005]):
[9] From (7) and (8) one can conclude, reminding the above
assumption on the
values of the parameter
b, that the main contribution to
the integral (9) corresponds to the values of
r in the interval
0 < r< 3. Moreover, since
|x|/l>>1 integral (9) is not small
only in the case when the expression in the big parentheses in the
exponent of the integrand is small. Further, since
H0/l<<1, the
functions
One can see that the integral (9) gets its largest values near the circle |x|=C0 t, i.e. in a neighborhood of the wavefront. Then, if we take in series (10) the first terms only, we obtain from (9) the formulae for h(x,t) in the long waves approximation. From (9) and (10) we can derive roughly the following requirement for the correctness of the long wave approximation
Taking H0=4 km, l=50 km we find from (11) that for the typical conditions of the ocean, equation (1) can be used instead of the general equations (3) in the piston model in the case of a basin of uniform depth. We note that the same conclusion can be done for initial disturbances of more general types than those described by (6) as well as in the case of a basin with a non-uniform slowly varying depth. According to this reason we will consider here the problem in the long wave approximation (1, 2) instead of the general equations (3). [10] Thus, from (9) an asymptotic formula for h(x,t) at any instant t and observation point x located near wavefront and satisfying requirement |x|>>l and (11) becomes
where y is the angle between the vector x and the axis Ox1,
In (13) the function
is given by (5) for an initial disturbance of a general type and by (7) for the disturbance (6) considered here. In the last case the integral in (13) is evaluated analytically and F(z,y) becomes
where
and 1F1(...) are the Kummer's confluent hypergeometric functions. The function F can be expressed also in terms of parabolic cylinder functions D<font face="Symbol">n (see [Dobrokhotov et al., 1991]), we use here the form given by Mathematica.

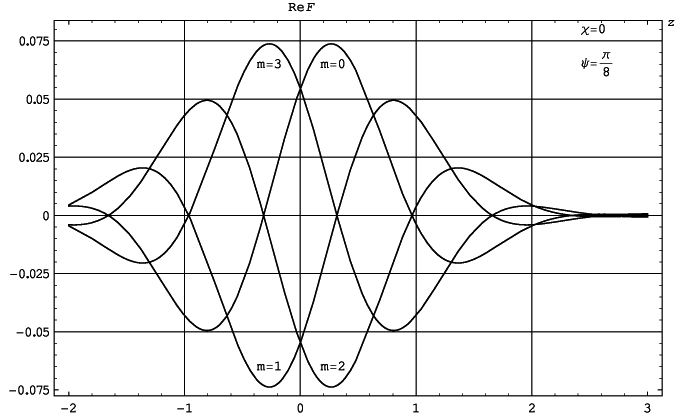

[12] Figure 1 shows that in the case
b1 [13] In the case of the initial disturbance of general type, the function F(z,y) can be calculated from (13) and (5) numerically. The calculation is simplified by the fact that the important part of the integral (13) corresponds to the values of the variable of integration r of the order of several units. [14] Keeping in mind that the structures of the asymptotic formulae for h(x,t) are similar in the cases of the basins of uniform and non uniform depth (see Sec 3), we give the following comments on the formulae (12) using terminology of the WKB theory. [15] The function F(x,t) in (12) can be called the phase because of two facts. First, from (12) and (13) it is clear that |h(x,t)| has a maximum when F(x,t)=0 and decays rapidly with increasing |F(x,t)|. Second, outside of the neighborhood of origin x=0 the function F(x,t) is the action or a solution of 2-D Hamilton-Jacobi equation
corresponding to (1) in the case of the basin of the uniform depth H0. [16] The integration of the last equation is connected with the Hamiltonian system (see e.g. [Maslov and Fedoiuk, 1981]); for (15) it is determined by the following 2-D Hamiltonian H=C0|p|, where p=(p1,p2) is a momentum. Thus the corresponding Hamiltonian system has the form
Consider the one-parametric family of trajectories of this system satisfying the following initial conditions
where
and the angle
y [17] In the case of a basin with a non-uniform depth, asymptotic formulas for h(x,t) have a structure similar to that in (12). But the rays are no more straight lines, the Hamiltonian is more complicated, the factor (l / |x|)1/2 has to be replaced by other one and sometimes the power in the exponent e-ip/4 has to be multiplied by an integer number m which has a deep topological meaning since it is possible, under certain condition, to evaluate m as the Morse index of the trajectory. [18] Anyway, it is clear that the algorithm for calculating h(x,t) from the (12) is faster than the finite difference method since for finding the value of the amplitude of the tsunami front passing in the point x at time t it is not necessary to integrate over all the space but one need just to identify the trajectory starting from the point where the initial perturbation has taken place and arriving to the point x at time t. In other words this method of integration is "local" in the sense that it is concentrated on the trajectories of an Hamiltonian system. This Hamiltonian system is not difficult to solve numerically in the case of a basin of non-uniform depth. 3. Asymptotic Formulas for the Wave Profile in the Non-Uniform Depth Basin
3.1. Relationship Between Fast Oscillating and Localized Solutions[19] In this section we begin an asymptotic analysis of Cauchy problem (1, 2). We use here well known objects and their characteristics which one can find in books connected with the semiclassical asymptotic and ray method, geometrical optics and wave fronts, Hamiltonian mechanics, catastrophe theory etc. We try to collect here all necessary concepts and give their description in elementary form. A more complete presentation and details can be found in [Maslov, 1965; Maslov and Fedoiuk, 1981; Arnold, 2001; Babich and Buldyrev, 1991; Kravtsov and Orlov, 1990].[20] We introduce a parameter
![]() [21] The problem now is to find asymptotic solutions h(x,t) to the wave equation with variable coefficient. They can be expressed by means of the wavefront formed by rays (an accurate definition is given in the next subsection). One has to introduce curved rays and characteristics given by 1-D family of trajectories P(t,y),X(t,y) of an appropriate Hamiltonian system. This Hamiltonian system can be found using a WKB expression for h= A(x,t) exp(iS(x,t)/h) (with some small artificial parameter h ) inserting it in the equation and considering the equations of zero and first orders. The first order equation is the Hamilton-Jacobi equation similar to (15) but with coefficient C(x) instead of C0.
[22] The solutions of the corresponding Hamiltonian system define
trajectories which are not straight lines as in the case with
the constant coefficient
C0, but are curves. We mentioned
before that WKB solutions do not describe the localized
solutions. In order to pass from oscillating solutions to
localized ones we introduce a new variable
r, put
h=l/r, multiply WKB solutions by some decaying (as
r 3.2. Rays and Wave Fronts[23] The Hamiltonian system in the case of a basin with non-uniform depth H(x) is:
[24] The projections
x=X(y, t) of the trajectories on the plane
3.3. The Wave Profiles Before Critical Times.[25] There exist d>0 and t1>d such that a wave front exists but there are no focal points for t![]() ![]() ![]() [26] The phase is defined by
[27] Now we state the first main proposition of this paper.
[28] In order to compute the elevation
h(x,t) at the point
x and time
t, one has to find the trajectory of the Hamiltonian
system starting from
x=0 and arriving at time
t in the point
x. Then it is possible to compute the phase
S(x,t) using the
approximation written above. The trajectory is defined (see
(20)) by the function
H(x) and the angle
y(x,t) which is the angle between the
x1 axis and the ray arriving
at the point
x at the instant
t from the origin
x=0, where
the ray was at the instant
t=0. So
y can be find by the
solution of equation
x=X(t,y). The solution exists and it
is unique since the vector
[29] Explicit formula (23) shows that the elevation of the free surface h(x,t) is defined by the form of the initial disturbance through the function F(z,y) and by the variation of the depth of the basin along the trajectories of the system. [30] It should be noted that despite of the simple and natural form of (23) its proof is not trivial at all. The main step is to prove the fact that the formula is the same as in the case of constant bottom, if the wave rays are found correctly. [31] Now we derive some consequences from formula (23). Since the phase S(x,t) is equal to zero on the wave front and |S(x,t)|/l increases rapidly going out from it, then maximum of |h| is attained in a neighborhood of the wave front. Moreover, h(x,t) can exhibit few oscillations depending on the properties of the function F(z,y) (which in turn, depend on the form of the initial disturbance, see Figures 1 and 2). The second factor in (23) can be interpreted as two dimensional analogue of the Green law, well known in the theory of tidal waves in the channels: amplitude of h increases as 1/(H(x))1/4 when the depth H(x) of the basin decreases; the factor 1/(|Xy|)1/2 is connected to the divergence of the rays, in other words if a smaller number of rays goes through a neighborhood of the point X(t,y), the smaller will be the amplitude of the wave field. The factor (H(0) / (H(X(t,y))) in the phase S(x,t) (see (22)) expresses the phenomena known as the "contraction'' of the wave profile and explains the fact that the wave length of a tsunami decreases when the wave approaches the coast. [32] We can imagine the following situation. Let two rays start from x= 0 with two very different angles y1 and y2, arrive to the wave front in two nearby points due to properties of the function H(x). Let also assume that the values of the function F(z,y) are very different for the angles y1, y2 and equal values of z (due to the form of the initial disturbance). Then the amplitudes of h(x,t) can be very different at these nearby points.
3.4. The Wave Profile After Critical Times.[34] At the instances t>tcr focal points appear on the wavefront. Now, the elevation h(x,t) of the wave in a point x belonging to a neighborhood of this point can be represented as a sum of the contributions coming from different yj(x,t), yj(x,t), and Sj(x,t) with index j, and with the so-called Maslov index mj=m(yj(x,t),t).[35] The Maslov index takes one of the following integer values: 0,1,2,3. It is defined in many ways and containing the topological information of the problem under considerations. We have shown in the paper [Dobrokhotov et al., 2006b] that for the problem (1, 2) one can simplify its calculation connecting mj=m(yj(x,t),t) with the Morse index which counts the number of focal point staying on a trajectory. So this is the Proposition generalizing the formula from Proposition 1:
[37] Let us emphasize that the number m has a pure topological and geometrical character and can be calculated without any relation with the asymptotic formulas for the wave field. From the Proposition 1, 2 it follows that, in order to construct the wave field at some time t in a point x, one has to know only the initial values h|t=0 and ht|t=0 and has not to know the wave field h for all previous time between 0 and t. The trajectories and the Maslov (Morse) index take into account all metamorphosis of the wave field during the evolution from zero time until time t. In the paper [Dobrokhotov et al., 2006b] some theorems have been shown for connecting those two indices and in the computer program which implements this algorithm there is a simple way for finding the focal points studying the change of the sign of the jacobian of the map. Note also that these formulas are easy to invert for finding the parameters of the shift V from the measures of the wave heights done at some stations. 3.5. Wave Field Asymptotic in a Neighborhood of Focal Point3.5.1. Wave front singularities and focal points[38] To give the complete description of the asymptotic solution to problem (1, 2) one has to describe the asymptotic of the function h in the neighborhood of the focal points. These points are the singular ones on the fronts and one can see them on the Figure 5 on the upper part and on the Figure 4 near the right upper corner. They are located over underwater ridge from the Figure 5 and actually connected with the well known trapped waves. The wave field amplitude increases in the neighborhood of these points and depends on the degree of their degeneration. It seams that in real situation only the simplest situation can be realized, nevertheless we give the formulas in a general situation.3.5.2. Focal points and coordinate system[39] So we consider the situation when for some t the point (PF,XF)=(P(t,yF(t)),X(t,yF(t))) corresponding to the angle yF(t) is a focal one. In this point Xy =0 and one has to use another asymptotic representation for the solution. Roughly speaking the neighborhood of the point X(t,yF(t)) on the plane![]() [40] We present the corresponding formula under the assumption that some derivative
and the derivatives
X(k)F<font face="Symbol">y=0 for
1 < k
and some characteristic quantities of the focal point (PF,XF):
[41] Again the topological characteristic appears, i.e. the Maslov index of this
focal point or its neighborhood (it is the same), but now it depends on the
choice of the coordinates in the neighborhood of
(PF,XF). It is natural to
choose the new coordinates
(x'1,x'2) associated with the nonzero vector
XF= X(t,yF(t)); namely we assume that the direction of the new
vertical axis
x'2 coincides with the vector
XF. We put
k2=(k21,k22)T= XF/| XF| =
XF/CF=PF CF/C0,
k1=(k11,k12)T=(k22,-k21)T and introduce the new coordinates
p',x' in the neighborhood of
(PF,XF) in
the phase space
[42] It is easy to see that
3.5.3. The Maslov index of a focal point.[43] The determinant![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() 3.5.4. The model functions and the wave profile in a neighborhood of the focal point.[44] Now we present the formulas for the wave field in the neighborhood of a focal point x=XF. Let us put![]()
We put
