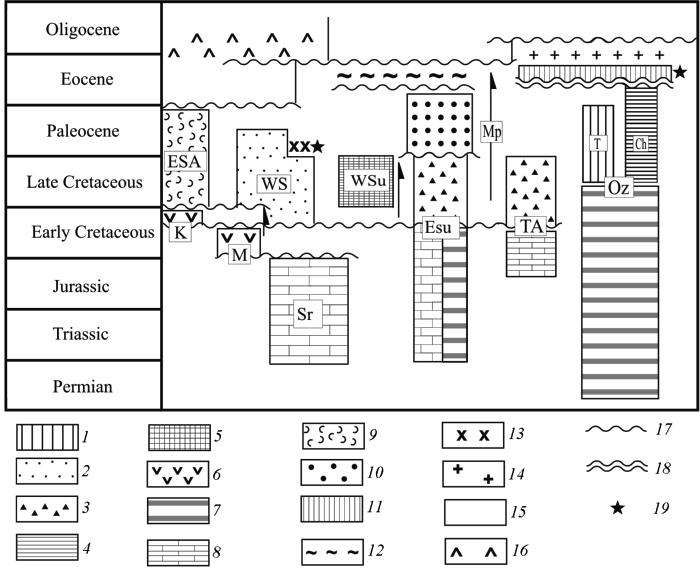

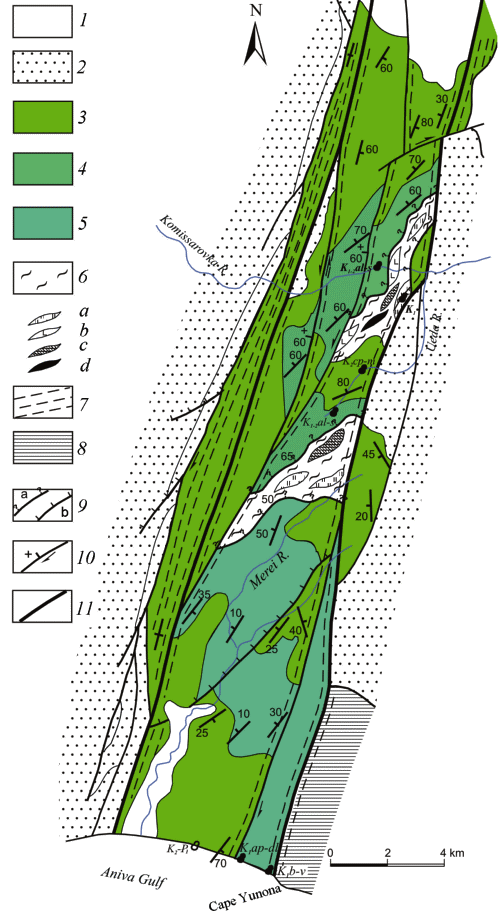

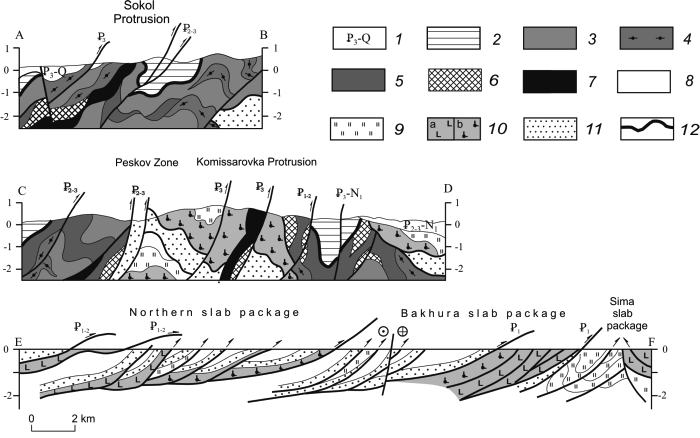

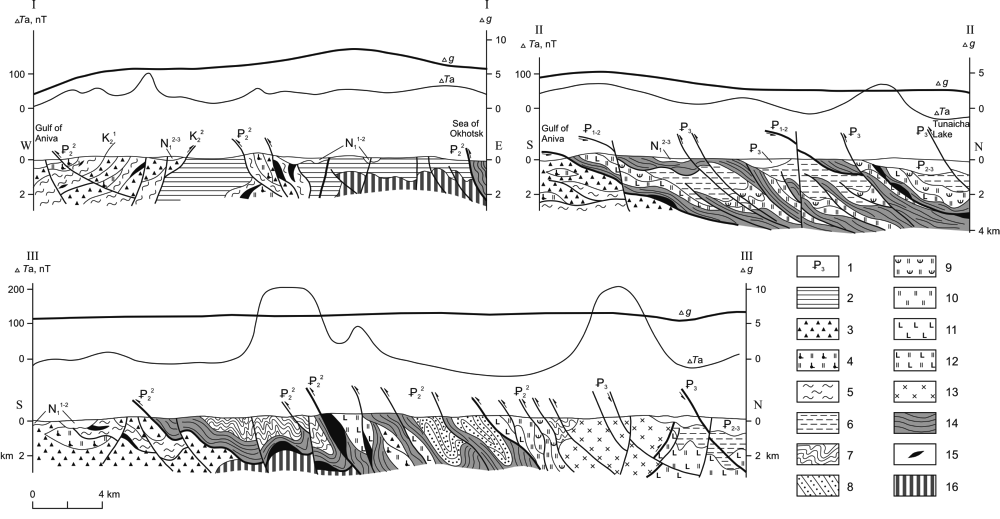

Figure 9. Space-time diagram for the South Sakhalin terrains. Structure-rock complexes: (1) Marginal sea basins; (2) Turbidite basin; (3) Continent-bordering accretion prism; (4) Intraoceanic accretion prism; (5) Subduction zone; (6) Island-arc; (7) Abyssal oceanic plate; (8) Oceanic rise; (9) Continental margin volcanic belt; (10) Sima melange ( pag1-2 ) (11) Vavai melange ( pag2 ); (12) Peskov Zone melange ( pag 22 ). Suturing rocks: (13) rhyolite ( pag1 ); (14) granite ( pag2-3 ). Overlying rocks: (15) Marine sedimentary and subcontinental rocks ( pag2-3 -N 1 ); (16) Volcanogenic sediments ( pag2-3 ). (17) Accretion onset; (18) Amalgamation; (19) Collision. Abbreviation: SO - Sorachi Terrain, K - Kem Terrain, WSu and ESu - West- and East Susunai subterrains, Tu and Ch - Tunaicha and Chaika subterrains, ESA - East Sikhote Alin volcanic belt. See Figure 2 for the legend.
