RUSSIAN JOURNAL OF EARTH SCIENCES VOL. 7, ES3003, doi:10.2205/2005ES000175, 2005

2005ES000175-fig04.html

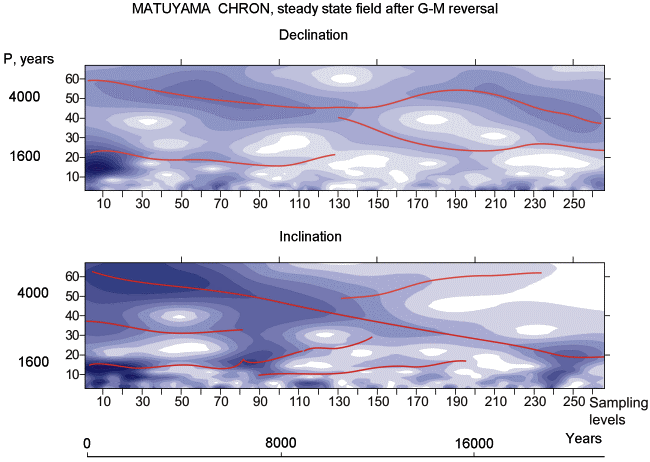

Figure 4. The wavelet diagrams of the NRM declination and inclination of the Matuyama chronozone located at a distance of about 26 m above the Gauss-Matuyama transition zone, this distance being approximately equivalent to 100 thousand years. The declination and inclination values analyzed represent, in the stratigraphic system of the coordinates, the average values for three specimens after their complete thermal demagnetization and component analysis. The P letter marks the most characteristic variation times. The red lines mark variations in the data series following from our interpretation. The time characteristic is approximate, varying with the number of the depth levels from which the samples were collected.

RJES

Citation: Gurarii, G. Z. (2005), Geomagnetic field reversals: Main results and basic problems, Russ. J. Earth Sci., 7, ES3003, doi:10.2205/2005ES000175.
